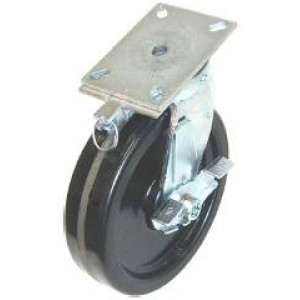

9400 Series
• Single ball bearing, precision machined, hardened & heat treated, "Kingpinless style sealed raceway." (3.43" diameter raceway with 1/2” ball bearings.)
• Top plate and yoke assembly : AISI 1045 drop forged steel. Legs are formed from 23/64" forged steel and are double welded for strength.
• Eliminates problems associated with kingpin failure.
• Corrosion-resistant zinc plated finish.
• 3/4" diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway.
• Applications: Great for applications involving extreme shock loading, towing, moving over cracks, uneven floors, and tarmacs, heavy mobile machinery & equipment, Extra heavy-duty material handling carts, buggies & platform trucks, ground support equipment, Extra heavy-duty warehouse and manufacturing plant applications, A frames, etc.
10" RIGID CASTER WITH DUCTILE STEEL WHEEL
10" RIGID CASTER WITH DUCTILE STEEL WHEEL MODEL NUMBER: 9410R-01-DUC CAPACITY: 4000 LBS WHEEL SIZE: ..
10" RIGID CASTER WITH PHENOLIC WHEEL
10" RIGID CASTER WITH PHENOLIC WHEEL MODEL NUMBER: 9410R-01-PHN CAPACITY: 2900 LBS WHEEL SIZE: 10" X..
10" RIGID CASTER WITH POLYURETHANE ON CAST IRON WHEEL
10" RIGID CASTER WITH POLYURETHANE ON CAST IRON WHEEL MODEL NUMBER: 9410R-01-PCI CAPACITY: 3000 LBS ..
10" RIGID CASTER WITH RUBBER ON CAST IRON WHEEL
10" RIGID CASTER WITH RUBBER ON CAST IRON WHEEL MODEL NUMBER: 9410R-01-RCI CAPACITY: 1000 LBS WHEEL ..
10" RIGID CASTER WITH STEEL (CAST IRON) WHEEL
10" RIGID CASTER WITH STEEL (CAST IRON) WHEEL MODEL NUMBER: 9410R-01-STL CAPACITY: 2700 LBS WHEEL SI..
10" SWIVEL CASTER WITH DUCTILE STEEL WHEEL
10" SWIVEL CASTER WITH DUCTILE STEEL WHEEL MODEL NUMBER: 9410-01-DUC CAPACITY: 4000 LBS WHEEL SIZE: ..
10" SWIVEL CASTER WITH DUCTILE STEEL WHEEL AND TOP LOCK BRAKE
10" SWIVEL CASTER WITH DUCTILE STEEL WHEEL AND TOP LOCK BRAKE MODEL NUMBER: 9410-01-DUC-TLB CAPACITY..
10" SWIVEL CASTER WITH LAMINATED PHENOLIC WHEEL
10" SWIVEL CASTER WITH LAMINATED PHENOLIC WHEEL MODEL NUMBER: 9410-01-LPN CAPACITY: 3625 LBS WHEEL S..
10" SWIVEL CASTER WITH LAMINATED PHENOLIC WHEEL AND TOP LOCK BRAKE
10" SWIVEL CASTER WITH LAMINATED PHENOLIC WHEEL AND TOP LOCK BRAKE MODEL NUMBER: 9410-01-LPN-TLB CAP..
10" SWIVEL CASTER WITH PHENOLIC WHEEL
10" SWIVEL CASTER WITH PHENOLIC WHEEL MODEL NUMBER: 9410-01-PHN CAPACITY: 2900 LBS WHEEL SIZE: 10" X..
